Tv-lift
horizontal
TV lift with or without swivel element

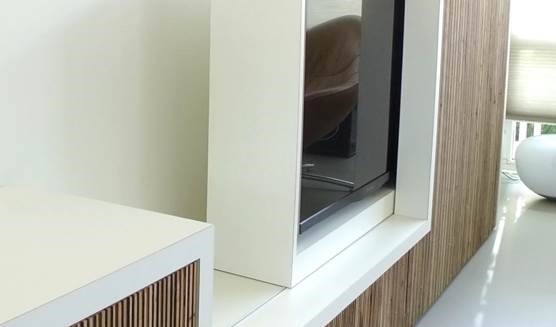

TVLIFTBOY supplies various horizontal TV lifts. These slide out your TV horizontally to the left or right. Great for use in a built-in or decorative fireplace, for example These TV lifts are available with or without a swivel element. This allows you to watch TV from any angle in the room if required. The powered flap included ensures a neat finish to the side view. Easy to build into a cupboard, fireplace or alcove construction.
You are here:
Horizontal range
Hide and move your TV flatscreen horizontally in a cabinet, fireplace or other enclosure.
Horizontal displacement to the left and/or right is possible, giving you a lot of freedom in room design. The telescopic lift arm reduces the required installation space. Suitable for TV screens of up to 55 inches, with a maximum weight of 20 kg.
Horizontal range with swivel function
The John Hots lifts allow you to move the TV sideways and rotate it to any viewing angle.
Hide the TV and TV lift behind a cabinet, fireplace or other enclosure. With a swivel option and motorised flap as standard. Horizontal displacement to the left or right is possible. The telescopic lift arm reduces the required installation space. Control by RF remote control as standard.
Downloads
Extra information
Type number | T014-1333 | T015-1333 |
Type of lift | / | / |
Installation frame | no | no |
Max. TV weight (kg) | 20 | 20 |
Installation height/depth (mm) | 1440 | 1440 |
Travel (mm) | 1333 | 1333 |
VESA | 200/300/400 | 200/300/400 |
Standard travel adjustable | no | no |
Integrated flap | no | no |
Electrically operated flap | yes | yes |
Swivel function | no | yes |
Standard operation | RF | RF |
